With the development trends of lightweight, high safety, and long service life in automobiles, driveshafts, frame steel, and shock absorber tubing, as key structural and functional components, face extremely stringent requirements for dimensional accuracy, roundness, straightness, weld strength, and surface quality. High-precision welded pipe production lines, with their core technologies of roller-share processing, mechanized rapid adjustment, and temperature-controlled welding, perfectly match the high standards of the automotive industry, becoming the mainstream solution for automotive parts tubing manufacturing.
I. High-Precision Tubing Requirements for Core Automotive Components
Automotive driveshafts require extremely high torsional strength, dynamic balance performance, and fatigue life. Even minor deviations in outer diameter, roundness, and wall thickness can directly lead to operational vibration, abnormal noise, and failure.
Automotive frame steel, as a key component for vehicle body load-bearing and collision protection, requires stable cross-sections, high weld strength, and uniform mechanical properties to ensure overall vehicle rigidity and collision safety.
Shock absorber tubing has extremely high requirements for internal bore accuracy, internal wall smoothness, and sealing reliability, directly determining damping performance and service life.
The general requirements for welded pipe production machines for these types of components are:
Outer diameter tolerance control within ±0.05mm–±0.1mm;
Wall thickness uniformity ≤±0.05mm;
Roundness error ≤0.5‰;
Straightness ≤0.3mm/m;
Weld strength ≥ 98% of base material;
Surface roughness Ra 0.8–1.6μm.
Traditional welded pipe production processes struggle to maintain stability and consistency in mass production, while high-precision welded pipe production lines achieve stable compliance through a systematic technical solution.
II. ZTZG Roller-Share Process + Mechanized Adjustment: Highly Efficient, Stable, and Flexible Production.

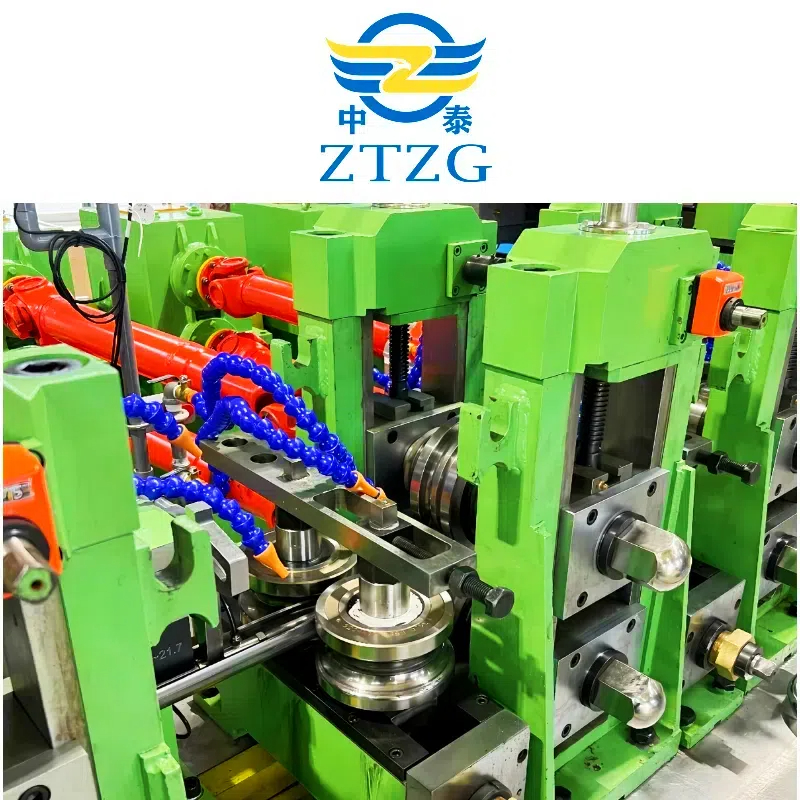

Traditional pipe-making machines require replacing the entire set of rollers to change specifications, resulting in long debugging times, significant human error, and poor precision consistency. The new generation of high-precision welded pipe production lines employs a no-roller-change process and a CNC mechanized adjustment system, enabling rapid specification switching without the need to change rollers.
Through a specially designed structure, servo-controlled precise positioning, and digital parameter presets, the production line can complete specification conversion within 30–60 minutes, ensuring stable forming. This highly flexible welded pipe production machine is particularly well-suited to the automotive industry’s demand for diverse, small-batch, and highly consistent production.
III. Temperature-Controlled Welding: Strong Welds, High Efficiency, and Excellent Stability.
The solid-state high-frequency welding machine is the core welding equipment of the high-precision welded pipe production machine.
A high-precision colorimetric pyrometer and its electric welded pipe production control system achieve molecular-level metallurgical bonding at the strip edge through rapid, centralized heating. It is easy to measure temperature, has strong anti-interference capabilities, and allows for monitoring and adjustment of the actual temperature via a visual screen. The weld is dense, smooth, and has minimal flash. The weld strength can reach over 98% of the base material, fully meeting the structural strength requirements of drive shafts and main beam steel.
Stable, fluctuation-free output ensures the sealing and fatigue resistance of the pipes used in shock absorbers.
Simultaneously, energy consumption is reduced by approximately 35%, resulting in more stable operation of the welded pipe production line and enabling high-speed continuous production.
Against the backdrop of the electrification, intelligentization, and high-end upgrading of automobiles, high-precision welded pipe production lines, supported by non-mold-changing processes, mechanized adjustments, and temperature-controlled high-frequency welding, provide stable, efficient, and cost-effective manufacturing solutions for automotive drive shafts, beam steel, and shock absorber pipes, fully meeting the stringent standards of the automotive industry.
