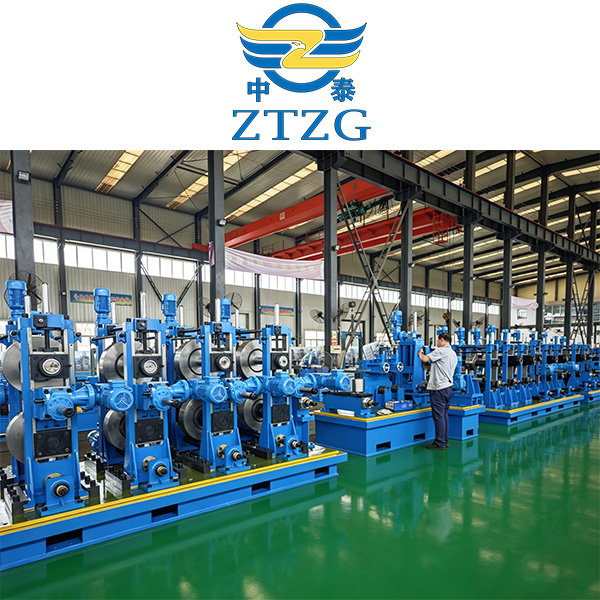

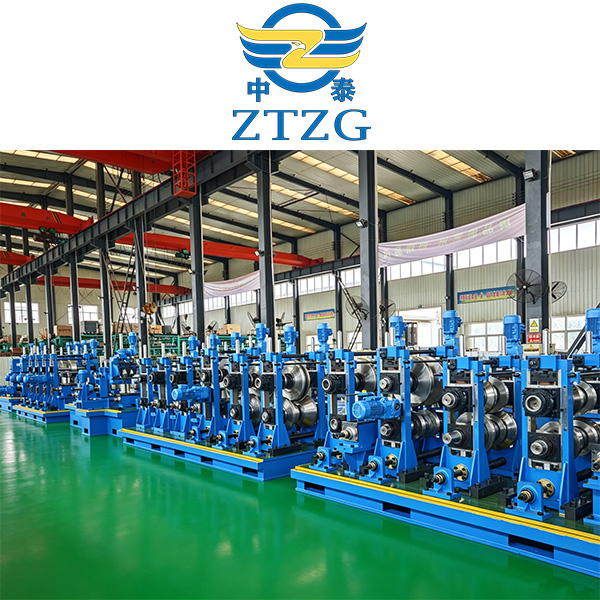

Precision welded pipe production line;Steel Pipe Making Machine
This pipe-making machine is a specialized welded pipe production machine used in industries such as metallurgy, construction, transportation, machinery, and vehicles to produce small-diameter straight seam welded pipes.
Using long steel strips of a certain specification as raw material, it produces steel pipes of the required specifications through cold bending and high-frequency induction welding.
This pipe making machine unit boasts a high production speed, reaching up to 150m/min, while also producing high-precision products.
Advantages of the Pipe Making Machine:
Tell us your needs and we will provide you with a corresponding tube-making machine solution.
We can design and manufacture pipe making machine according to customers’ requirements.
If you have any questions about the tube making machine, please feel free to contact us.
E-mail：sales@ztzg.com
Phone / WhatsApp：8615931058620
|
ERW TUBE MILL LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
|
|
ERW20 |
Ф8-Ф20 |
6x6-15×15 |
0.3-1.5 |
120 |
Read More |
|
ERW32 |
Ф10-Ф32 |
10×10-25×25 |
0.5-2.0 |
120 |
|
|
ERW50 |
Ф20-Ф50 |
15×15-40×40 |
0.8-3.0 |
120 |
|
|
ERW76 |
Ф32-Ф76 |
25×25-60×60 |
1.2-4.0 |
120 |
|
|
ERW89 |
Ф42-Ф89 |
35×35-70×70 |
1.5-4.5 |
110 |
|
|
ERW114 |
Ф48-Ф114 |
40×40-90×90 |
1.5-4.5 |
65 |
|
|
ERW140 |
Ф60-Ф140 |
50×50-110×110 |
2.0-5.0 |
60 |
|
|
ERW165 |
Ф76-Ф165 |
60×60-130×130 |
2.0-6.0 |
50 |
|
|
ERW219 |
Ф89-Ф219 |
70×70-170×170 |
2.0-8.0 |
50 |
|
|
ERW273 |
Ф114-Ф273 |
90×90-210×210 |
3.0-10.0 |
45 |
|
|
ERW325 |
Ф140-Ф325 |
110×110-250×250 |
4.0-12.7 |
40 |
|
|
ERW377 |
Ф165-Ф377 |
130×130-280×280 |
4.0-14.0 |
35 |
|
|
ERW406 |
Ф219-Ф406 |
170×170-330×330 |
6.0-16.0 |
30 |
|
|
ERW508 |
Ф273-Ф508 |
210×210-400×400 |
6.0-18.0 |
25 |
Read More |
|
ERW660 |
Ф325-Ф660 |
250×250-500×500 |
6.0-20.0 |
20 |
Read More |
|
ERW720 |
Ф355-Ф720 |
300×300-600×600 |
6.0-22.0 |
20 |
Read More |
|
STAINLESS STEEL PIPE PRODUCTION LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working speed m/min |
|
|
SS25 |
Ф6-Ф25 |
5×5-20×20 |
0.2-0.8 |
10 |
Read More |
|
SS32 |
Ф6-Ф32 |
5×5-25×25 |
0.2-1.0 |
10 |
Read More |
|
SS51 |
Ф9-Ф51 |
7×7-40×40 |
0.2-1.5 |
10 |
Read More |
|
SS64 |
Ф12-Ф64 |
10×10-50×50 |
0.3-2.0 |
10 |
Read More |
|
SS76 |
Ф25-Ф76 |
20×20-60×60 |
0.3-2.0 |
10 |
Read More |
|
SS114 |
Ф38-Ф114 |
30×30-90×90 |
0.4-2.5 |
10 |
Read More |
|
SS168 |
Ф76-Ф168 |
60×60-130×130 |
1.0-3.5 |
10 |
Read More |
|
SS219 |
Ф114-Ф219 |
90×90-170×170 |
1.0-4.0 |
10 |
Read More |
|
SS325 |
Ф219-Ф325 |
170×170-250×250 |
2.0-8.0 |
3 |
Read More |
|
SS426 |
Ф219-Ф426 |
170×170-330×330 |
3.0-10.0 |
3 |
Read More |
|
SS508 |
Ф273-Ф508 |
210×210-400×400 |
4.0-12.0 |
3 |
Read More |
|
SS862 |
Ф508-Ф862 |
400×400-600×600 |
6.0-16.0 |
2 |
Read More |
