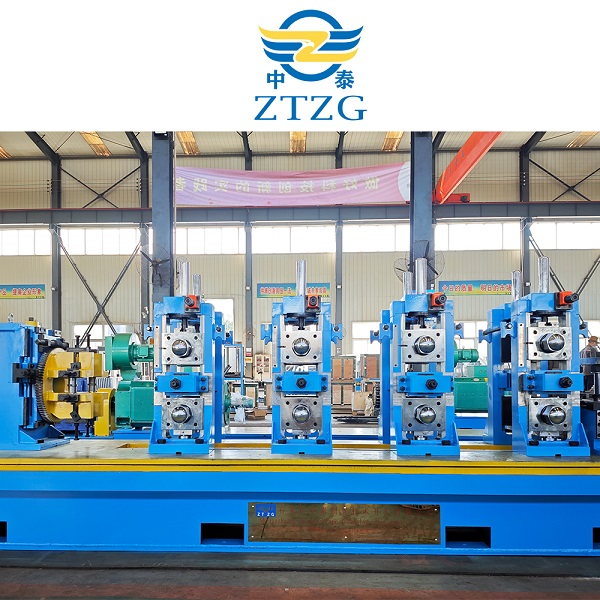

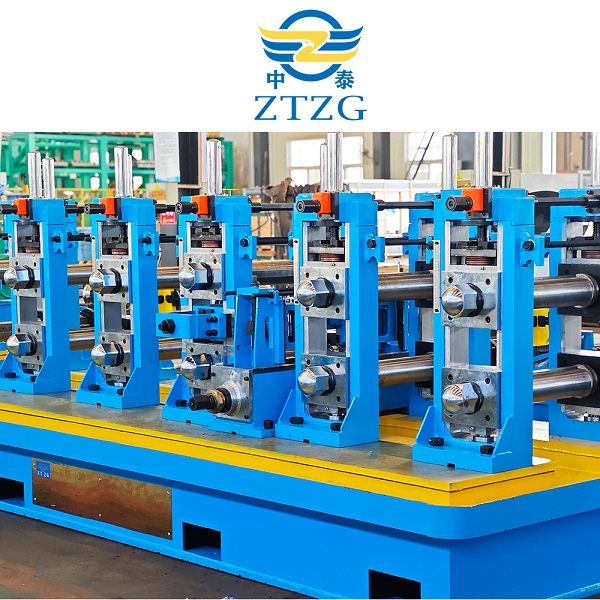

Square tube production equipment / Square pipe making machine

Short Description:

Rectangular and square tubes are a common building material, characterized by structural stability, high strength, and low cost.

The applications of rectangular and square tubes are wide-ranging, covering multiple fields such as construction, machinery manufacturing, energy, and transportation.

The main production equipment for rectangular and square tubes is cold bending forming.

Cold bending forming equipment is one of the main pieces of equipment for producing rectangular and square tubes. Its working principle is to bend metal strips into the required shape through a series of rollers, and then produce rectangular and square tubes through processes such as welding and cutting.

1. Indirect forming: First, a round tube is rolled and then shaped into a square tube. This is suitable for small and medium-sized products, but it has the defect of uneven thickness at the corners.

2. Direct forming: Rectangular and square tubes are directly rolled at room temperature. A bending radius and bending point location process is used, which can improve the uniformity of corner thickness and is suitable for large-scale production.

ZTZG has independently developed, designed, and manufactured fully automated, mold-free rectangular tube production equipment.

We can design and manufacture pipe making machines according to customers’ requirements.

Place of Origin: Hebei, China (Mainland)

Port: Xingang, Tianjin, Customer Specified

Payment: T/T, Cash, Paypal, D/P

Certification: ISO, CE, Invention Patent

Warranty: 1 Year

After-sales Service: Online Technical Support, Engineer On-site Guidance

Application: Metallurgy, Construction, Transportation, Vehicle Industries, etc.
