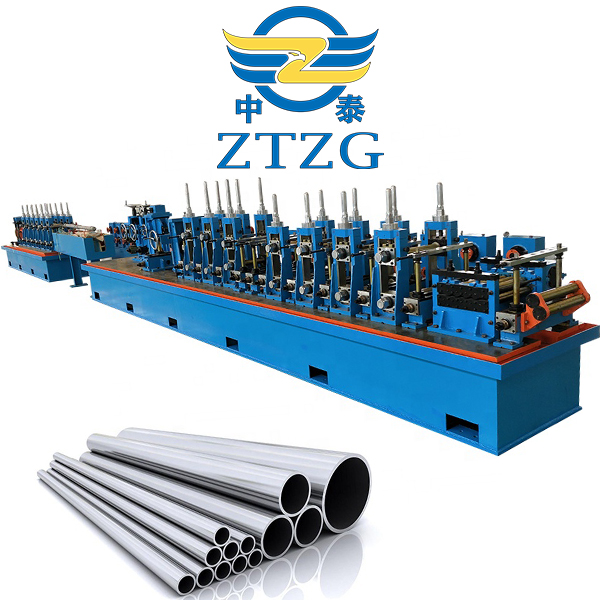

Stainless steel tube mill / Stainless tube making machine
Short Description:
The stainless steel pipe production line can produce round pipe, square and rectangular tube through cold rolled forming and TIG welding technology. This pipe making machine adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method.
Stainless Steel Pipe Production Line
ZTZG series stainless steel welded pipe production lines are mainly for the production of stainless steel and carbon steel thicker pipes (round pipes) mainly used in industrial areas or high requirements in the decorative areas. The products produced by this series of units are round pipe, square pipe, rectangular pipe, also can produce oval pipe, half round pipe, plum pipe and other special-shaped pipe.
Stainless Steel pipe manufacturing process:
Scrolling Up→ Uncoiling → Scrolling up→ Forming → Welding→ Grinding → Sizing→ Straightening→ Cutting → Run out table →Inspecting→ Packing→ Warehouse
China New Product China Pipe Making Machine and Steel Pipe Making Machine, We always insist on the management tenet of “Quality is First, Technology is Basis, Honesty and Innovation”.We are able to develop new goods continuously to a higher level to satisfy different needs of customers.
The stainless steel pipe production line can produce round pipe, square and rectangular tube through cold rolled forming and TIG welding technology.
This pipe making machine adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method.
|
ERW TUBE MILL LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
|
|
ERW20 |
Ф8-Ф20 |
6x6-15×15 |
0.3-1.5 |
120 |
Read More |
|
ERW32 |
Ф10-Ф32 |
10×10-25×25 |
0.5-2.0 |
120 |
|
|
ERW50 |
Ф20-Ф50 |
15×15-40×40 |
0.8-3.0 |
120 |
|
|
ERW76 |
Ф32-Ф76 |
25×25-60×60 |
1.2-4.0 |
120 |
|
|
ERW89 |
Ф42-Ф89 |
35×35-70×70 |
1.5-4.5 |
110 |
|
|
ERW114 |
Ф48-Ф114 |
40×40-90×90 |
1.5-4.5 |
65 |
|
|
ERW140 |
Ф60-Ф140 |
50×50-110×110 |
2.0-5.0 |
60 |
|
|
ERW165 |
Ф76-Ф165 |
60×60-130×130 |
2.0-6.0 |
50 |
|
|
ERW219 |
Ф89-Ф219 |
70×70-170×170 |
2.0-8.0 |
50 |
|
|
ERW273 |
Ф114-Ф273 |
90×90-210×210 |
3.0-10.0 |
45 |
|
|
ERW325 |
Ф140-Ф325 |
110×110-250×250 |
4.0-12.7 |
40 |
|
|
ERW377 |
Ф165-Ф377 |
130×130-280×280 |
4.0-14.0 |
35 |
|
|
ERW406 |
Ф219-Ф406 |
170×170-330×330 |
6.0-16.0 |
30 |
|
|
ERW508 |
Ф273-Ф508 |
210×210-400×400 |
6.0-18.0 |
25 |
Read More |
|
ERW660 |
Ф325-Ф660 |
250×250-500×500 |
6.0-20.0 |
20 |
Read More |
|
ERW720 |
Ф355-Ф720 |
300×300-600×600 |
6.0-22.0 |
20 |
Read More |
|
STAINLESS STEEL PIPE PRODUCTION LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working speed m/min |
|
|
SS25 |
Ф6-Ф25 |
5×5-20×20 |
0.2-0.8 |
10 |
Read More |
|
SS32 |
Ф6-Ф32 |
5×5-25×25 |
0.2-1.0 |
10 |
Read More |
|
SS51 |
Ф9-Ф51 |
7×7-40×40 |
0.2-1.5 |
10 |
Read More |
|
SS64 |
Ф12-Ф64 |
10×10-50×50 |
0.3-2.0 |
10 |
Read More |
|
SS76 |
Ф25-Ф76 |
20×20-60×60 |
0.3-2.0 |
10 |
Read More |
|
SS114 |
Ф38-Ф114 |
30×30-90×90 |
0.4-2.5 |
10 |
Read More |
|
SS168 |
Ф76-Ф168 |
60×60-130×130 |
1.0-3.5 |
10 |
Read More |
|
SS219 |
Ф114-Ф219 |
90×90-170×170 |
1.0-4.0 |
10 |
Read More |
|
SS325 |
Ф219-Ф325 |
170×170-250×250 |
2.0-8.0 |
3 |
Read More |
|
SS426 |
Ф219-Ф426 |
170×170-330×330 |
3.0-10.0 |
3 |
Read More |
|
SS508 |
Ф273-Ф508 |
210×210-400×400 |
4.0-12.0 |
3 |
Read More |
|
SS862 |
Ф508-Ф862 |
400×400-600×600 |
6.0-16.0 |
2 |
Read More |
