High-efficiency automated pipe making machine

Short Description:

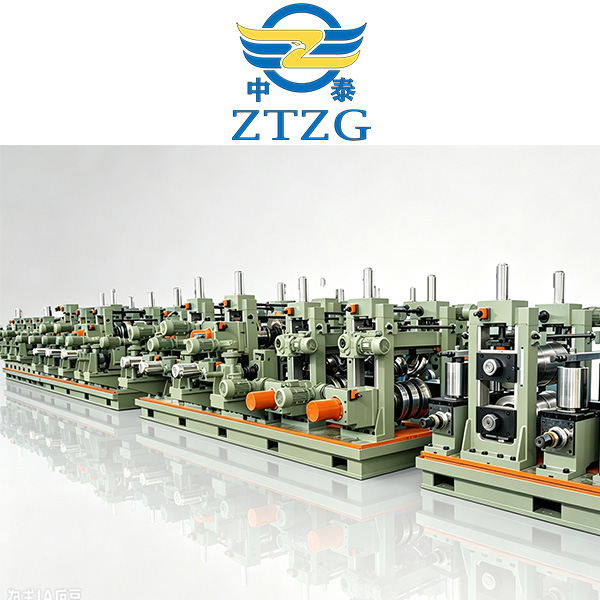

High-efficiency automated pipe-making machine

For producing ordinary carbon steel pipes, the forming section rollers before welding are shared. When changing to different production specifications, there is no need to disassemble and replace the rollers; only the sizing section roller needs to be replaced.

Place of Origin: Hebei, China (Mainland)

Port: Xingang, Tianjin, Customer Specified

Payment: T/T, Cash, Paypal, D/P

Certification: ISO, CE, Invention Patent

Warranty: 1 Year

After-sales Service: Online Technical Support, Engineer On-site Guidance

Application: Metallurgy, Construction, Transportation, Vehicle Industries, etc.

Message Contact Us

Product Detail

PRODUCT MODEL LIST

Product Tags

ZTZG Round-to-Round Share-roller Pipe Production Line

https://www.ztzgsteeltech.com/tube-mill-round-share-roller-xztf/

For producing stainless steel pipes and low-carbon steel pipes using submerged arc welding, because the welding speed is slower, it is possible to achieve roller-free production throughout the entire line. That is, for producing steel pipes of different specifications, the rollers are shared throughout the line, and electric adjustment is also possible.

https://www.ztzgsteeltech.com/automated-150-pipe-making-machine-product/

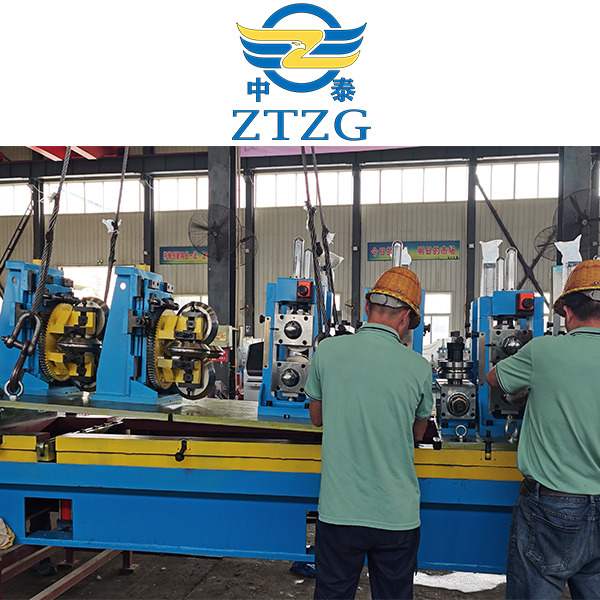

Rapid Size Change Technology

To enable rapid size changes in the sizing section, a quick-change platform system combined with a hydraulic quick-release mechanism can be employed to hydraulically engage and disengage the drive shaft.

By using a crane to swap out platform units loaded with rolls of different specifications—and utilizing the hydraulic system to connect or disconnect the drive shaft—the requirement for changing sizes in the sizing section can be met within a matter of tens of minutes.

https://www.ztzgsteeltech.com/hydraulic-shaft-quick-change-erw-pipe-mill/

Key Advantages

✓ Customers save on mold investment and benefit from high production efficiency, reduced equipment wear, and lower labor intensity.
✓ The products feature high precision, flatter edges, and more uniform appearance.

Previous: Intelligent Round Pipe Making Machine

Next: Automated Round Pipe Production Line

ERW TUBE MILL LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15×15	0.3-1.5	120	Read More
ERW32	Ф10-Ф32	10×10-25×25	0.5-2.0	120	Read More
ERW50	Ф20-Ф50	15×15-40×40	0.8-3.0	120	Read More
ERW76	Ф32-Ф76	25×25-60×60	1.2-4.0	120	Read More
ERW89	Ф42-Ф89	35×35-70×70	1.5-4.5	110	Read More
ERW114	Ф48-Ф114	40×40-90×90	1.5-4.5	65	Read More
ERW140	Ф60-Ф140	50×50-110×110	2.0-5.0	60	Read More
ERW165	Ф76-Ф165	60×60-130×130	2.0-6.0	50	Read More
ERW219	Ф89-Ф219	70×70-170×170	2.0-8.0	50	Read More
ERW273	Ф114-Ф273	90×90-210×210	3.0-10.0	45	Read More
ERW325	Ф140-Ф325	110×110-250×250	4.0-12.7	40	Read More
ERW377	Ф165-Ф377	130×130-280×280	4.0-14.0	35	Read More
ERW406	Ф219-Ф406	170×170-330×330	6.0-16.0	30	Read More
ERW508	Ф273-Ф508	210×210-400×400	6.0-18.0	25	Read More
ERW660	Ф325-Ф660	250×250-500×500	6.0-20.0	20	Read More
ERW720	Ф355-Ф720	300×300-600×600	6.0-22.0	20	Read More

STAINLESS STEEL PIPE PRODUCTION LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working speed m/min
SS25	Ф6-Ф25	5×5-20×20	0.2-0.8	10	Read More
SS32	Ф6-Ф32	5×5-25×25	0.2-1.0	10	Read More
SS51	Ф9-Ф51	7×7-40×40	0.2-1.5	10	Read More
SS64	Ф12-Ф64	10×10-50×50	0.3-2.0	10	Read More
SS76	Ф25-Ф76	20×20-60×60	0.3-2.0	10	Read More
SS114	Ф38-Ф114	30×30-90×90	0.4-2.5	10	Read More
SS168	Ф76-Ф168	60×60-130×130	1.0-3.5	10	Read More
SS219	Ф114-Ф219	90×90-170×170	1.0-4.0	10	Read More
SS325	Ф219-Ф325	170×170-250×250	2.0-8.0	3	Read More
SS426	Ф219-Ф426	170×170-330×330	3.0-10.0	3	Read More
SS508	Ф273-Ф508	210×210-400×400	4.0-12.0	3	Read More
SS862	Ф508-Ф862	400×400-600×600	6.0-16.0	2	Read More
