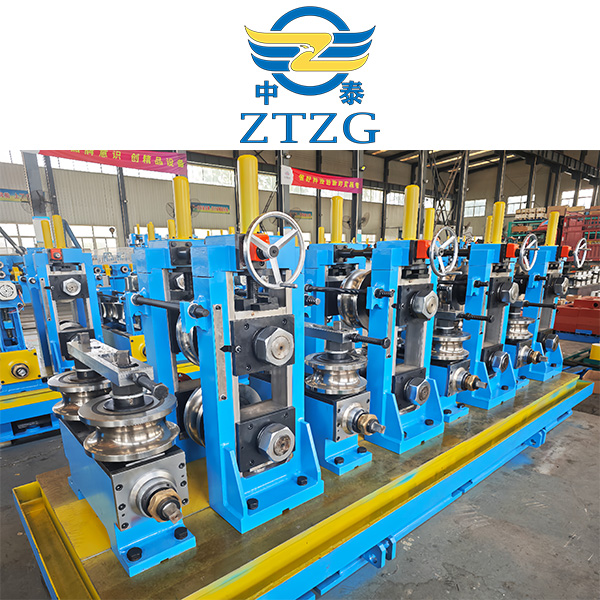

Multi-Roller Quick-Switching ERW Pipe Mill

Short Description:

Multi-roller Quick-switching ERW Pipe Mill is specially designed for some special tube, such as scaffold pipes (Common specification: 48mm or 60mm).

Place of Origin: Hebei, China (Mainland)

Port: Xingang, Tianjin, Customer Specified

Payment: T/T, Cash, Paypal, D/P

Certification: ISO, CE, Invention Patent

Warranty: 1 Year

After-sales Service: Online Technical Support, Engineer On-site Guidance

Application: Metallurgy, Construction, Transportation, Vehicle Industries, etc.

Message Contact Us

Product Detail

PRODUCT MODEL LIST

Product Tags

Specialized in Pipe Production Line

More than 23 years...

High Frequency (HF) longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 8mm to 89mm in OD and with a maximum wall thickness of 4.5mm, as well as corresponding square and rectangular pipe.

Round Pipe

Square Pipe

Rectangular Tube

But wait, there is more

Multi-Roller Quick-Switching ERW Pipe Mill

Multi-roller Quick-changing ERW Tube Production Line is suitable when a production line has 2-3 specifications. There is no need to replace the mold, just place the corresponding mold on the roll shaft in advance, and the motor automatically adjusts the roll position without disassembly. When the diameter of the produced pipe is less than 50mm, three sets of molds can be placed.

Forming Section Share-roller

Sizing section roller quick switching

Load rollers for difference specifications and switch to the correct one when in forming.

Overturn traditional roller switch method.

Suitable for smaller sized production lines that require frequent roller changes.

Multi-Roller Quick-Switching ERW Pipe Mill

Round Pipe Full Line Share-roller

A set of rollers to fulfill all specifications. No need to replace the mold.

Round pipe sizing section intellectual control and adjustment.

Reduce the interference of human operation factors. Improve accuracy to achieve standardization.

Cloud data service.

Product Information

Line Component

Material Information

Finished Product

Line Specification

Line Component

Line Component	Uncoiler Shear & end welder Accumulator Forming & sizing machine H.F welder Flying saw Stacking & packing machine
Special	Hydraulic testing machine, intermediate frequency annealing machine, ultrasonic flaw detection machine, etc.

Material Information

Material	High strength steel, Low carbon steel, GI, etc
Strip Steel Width	25 mm- 280mm
Strip Steel Thickness	0.6-4.5 mm
Strip Steel Coil	Inner diameter：Φ470～508 mm Outer diameter：Φ1000～1800mm Weight: Max=1-5 Ton

Finished Product

Round Pipe	Φ8-Φ89 mm
Thickness	0.6-4.5 mm
Square Tube	10x10-70x70 mm
Thickness	0.6-3.5 mm
Rectangular Tube	10×20-60×80 mm
Thickness	0.6-3.5 mm
Length	6-12 m

Line Specification

Forming Speed	Max 120 m/min (Attn: Max pipe diameter thickness doesn't correspond with the max speed)
Feeding Direction	Left feeding (or right feeding), option by customer
Electric Installed Capacity	280-700 kw
Production Line Size	45×6 m-80×6 m
Color of Machines	Blue or customized
Yearly Out-put	About 40,000 tons

High Efficiency

Line speed can be up to 120m/min.

Low Wastage

Reduce the labor intensity and labor time

Safe and Time-saving

No need to replace the mold.

Product Application

We can design and manufacture pipe making machine according to customers’ requirements.

New Energy Industry

High-speed Guardrail

Architectural Decoration Industry

Everything you need to create a steel pipe production line

LEARN MORE

Our Certificate

Our Company

Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.was established in 2000 locating in Shijiazhuang, the capital city of Hebei Province. The factory covers an area of 67,000 square meters. Our main products consist high frequency straight welded pipe production line, cold roll steel production line, multi-function cold roll steel/welded pipe production line, slitting line production line, stainless steel pipe mill, various pipe mill auxiliary equipment and rollers, etc.

Learn more...

Ready for a new
Business Adventure?

Contact Now！

Previous: Turk-Head Forming ERW Pipe Mill

Next: Direct Square Forming Tube Mill

ERW TUBE MILL LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15×15	0.3-1.5	120	Read More
ERW32	Ф10-Ф32	10×10-25×25	0.5-2.0	120	Read More
ERW50	Ф20-Ф50	15×15-40×40	0.8-3.0	120	Read More
ERW76	Ф32-Ф76	25×25-60×60	1.2-4.0	120	Read More
ERW89	Ф42-Ф89	35×35-70×70	1.5-4.5	110	Read More
ERW114	Ф48-Ф114	40×40-90×90	1.5-4.5	65	Read More
ERW140	Ф60-Ф140	50×50-110×110	2.0-5.0	60	Read More
ERW165	Ф76-Ф165	60×60-130×130	2.0-6.0	50	Read More
ERW219	Ф89-Ф219	70×70-170×170	2.0-8.0	50	Read More
ERW273	Ф114-Ф273	90×90-210×210	3.0-10.0	45	Read More
ERW325	Ф140-Ф325	110×110-250×250	4.0-12.7	40	Read More
ERW377	Ф165-Ф377	130×130-280×280	4.0-14.0	35	Read More
ERW406	Ф219-Ф406	170×170-330×330	6.0-16.0	30	Read More
ERW508	Ф273-Ф508	210×210-400×400	6.0-18.0	25	Read More
ERW660	Ф325-Ф660	250×250-500×500	6.0-20.0	20	Read More
ERW720	Ф355-Ф720	300×300-600×600	6.0-22.0	20	Read More

STAINLESS STEEL PIPE PRODUCTION LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working speed m/min
SS25	Ф6-Ф25	5×5-20×20	0.2-0.8	10	Read More
SS32	Ф6-Ф32	5×5-25×25	0.2-1.0	10	Read More
SS51	Ф9-Ф51	7×7-40×40	0.2-1.5	10	Read More
SS64	Ф12-Ф64	10×10-50×50	0.3-2.0	10	Read More
SS76	Ф25-Ф76	20×20-60×60	0.3-2.0	10	Read More
SS114	Ф38-Ф114	30×30-90×90	0.4-2.5	10	Read More
SS168	Ф76-Ф168	60×60-130×130	1.0-3.5	10	Read More
SS219	Ф114-Ф219	90×90-170×170	1.0-4.0	10	Read More
SS325	Ф219-Ф325	170×170-250×250	2.0-8.0	3	Read More
SS426	Ф219-Ф426	170×170-330×330	3.0-10.0	3	Read More
SS508	Ф273-Ф508	210×210-400×400	4.0-12.0	3	Read More
SS862	Ф508-Ф862	400×400-600×600	6.0-16.0	2	Read More
