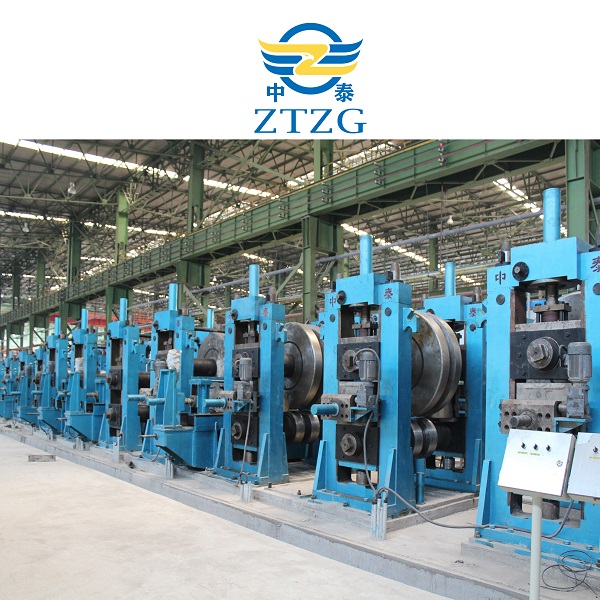

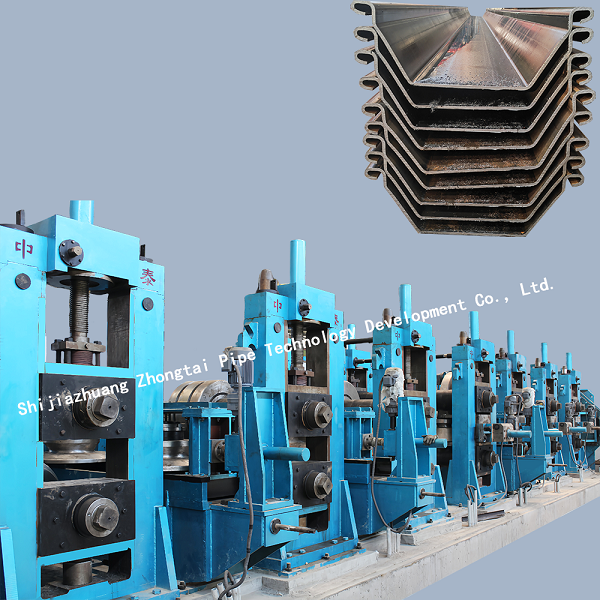

Open roll forming machine

Short Description:

Broad section steel production line is a machine with set of rollers can produce a variety of specifications of the finished C type purlin single roll molding machine.

The machine is mainly composed of passive charging frame, leveling device, punching device, cutting device after forming, hydraulic station, computer control system and so on.

It can produce all kinds of cold-formed steel products with a circumference of 2200mm, such as a square tube, open section steel, irregular section steel, etc.

Message Contact Us

Product Detail

PRODUCT MODEL LIST

Product Tags

Broad section steel production line is a machine with set of rollers can produce a variety of specifications of the finished C type purlin single roll molding machine. The machine is mainly composed of passive charging frame, leveling device, punching device, cutting device after forming, hydraulic station, computer control system and so on.

https://www.ztzgsteeltech.com/cold-roll-forming-machine-cold-rolled-broad-steel-production-line/

It can produce all kinds of cold-formed steel products with a circumference of 2200mm, such as a square tube, open section steel, irregular section steel, etc.

The thickness of finished products is 22mm max, and the material is Q345 (or customized).

Wide Applications

It is specialized for cold rolled section steel with wide spread uses for metallurgy, construction, transportation, machinery and vehicle industries.

Raw Material & Forming

It takes steel strip as raw material, produces cold rolled section steel by cold rolled section forming technology according to relevant request.

Advanced Technology

This kind of technology is advanced and reliable, PROFIBUS technology is also adopted to the control system. All of these ensured highly synchronization accuracy and best product quality. All the indicators and operational costs are controlled at the lowest level, which is greatly rewarded by the producers.

The Cold Rolled Steel Machine is a high-strength cold forming production line, which is designed for high-strength special plates and can meet the cold forming load.

The whole line is composed of hydraulic uncoiler – leading head – shovel head – pressing head – leveler – shearing – head, and tail butt welding – cold roll forming – hydraulic cutting – auto stacking, and so on.

We can design and manufacture pipe making machine according customers’ requirements.

Previous: Quick-change table-type pipe welding equipment

Next: Square Tube mill machine / square tube production

ERW TUBE MILL LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15×15	0.3-1.5	120	Read More
ERW32	Ф10-Ф32	10×10-25×25	0.5-2.0	120	Read More
ERW50	Ф20-Ф50	15×15-40×40	0.8-3.0	120	Read More
ERW76	Ф32-Ф76	25×25-60×60	1.2-4.0	120	Read More
ERW89	Ф42-Ф89	35×35-70×70	1.5-4.5	110	Read More
ERW114	Ф48-Ф114	40×40-90×90	1.5-4.5	65	Read More
ERW140	Ф60-Ф140	50×50-110×110	2.0-5.0	60	Read More
ERW165	Ф76-Ф165	60×60-130×130	2.0-6.0	50	Read More
ERW219	Ф89-Ф219	70×70-170×170	2.0-8.0	50	Read More
ERW273	Ф114-Ф273	90×90-210×210	3.0-10.0	45	Read More
ERW325	Ф140-Ф325	110×110-250×250	4.0-12.7	40	Read More
ERW377	Ф165-Ф377	130×130-280×280	4.0-14.0	35	Read More
ERW406	Ф219-Ф406	170×170-330×330	6.0-16.0	30	Read More
ERW508	Ф273-Ф508	210×210-400×400	6.0-18.0	25	Read More
ERW660	Ф325-Ф660	250×250-500×500	6.0-20.0	20	Read More
ERW720	Ф355-Ф720	300×300-600×600	6.0-22.0	20	Read More

STAINLESS STEEL PIPE PRODUCTION LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working speed m/min
SS25	Ф6-Ф25	5×5-20×20	0.2-0.8	10	Read More
SS32	Ф6-Ф32	5×5-25×25	0.2-1.0	10	Read More
SS51	Ф9-Ф51	7×7-40×40	0.2-1.5	10	Read More
SS64	Ф12-Ф64	10×10-50×50	0.3-2.0	10	Read More
SS76	Ф25-Ф76	20×20-60×60	0.3-2.0	10	Read More
SS114	Ф38-Ф114	30×30-90×90	0.4-2.5	10	Read More
SS168	Ф76-Ф168	60×60-130×130	1.0-3.5	10	Read More
SS219	Ф114-Ф219	90×90-170×170	1.0-4.0	10	Read More
SS325	Ф219-Ф325	170×170-250×250	2.0-8.0	3	Read More
SS426	Ф219-Ф426	170×170-330×330	3.0-10.0	3	Read More
SS508	Ф273-Ф508	210×210-400×400	4.0-12.0	3	Read More
SS862	Ф508-Ф862	400×400-600×600	6.0-16.0	2	Read More
