Quick-Change Workbench Φ50 Tube Mill

Short Description:

Quick-change table-type pipe welding equipment uses automated “table-changing technology” to produce round and square pipes of varying sizes on a single welded pipe.

When customers require production of different pipe sizes, the quick-change table for forming and sizing rolls can be quickly changed based on pipe size and thickness.

Place of Origin: Hebei, China (Mainland)

Port: Xingang, Tianjin, Customer Specified

Payment: T/T, Cash, Paypal, D/P

Certification: ISO, CE, Invention Patent

Warranty: 1 Year

After-sales Service: Online Technical Support, Engineer On-site Guidance

Application: Metallurgy, Construction, Transportation, Vehicle Industries, etc.

Message Contact Us

Product Detail

PRODUCT MODEL LIST

Product Tags

Quick-change table-type pipe welding equipment uses automated “table-changing technology” to produce round and square pipes of varying sizes on a single welded pipe.

When customers require production of different pipe sizes, the quick-change table for forming and sizing rolls can be quickly changed based on pipe size and thickness.

https://www.ztzgsteeltech.com/hydraulic-shaft-quick-change-erw-pipe-mill/

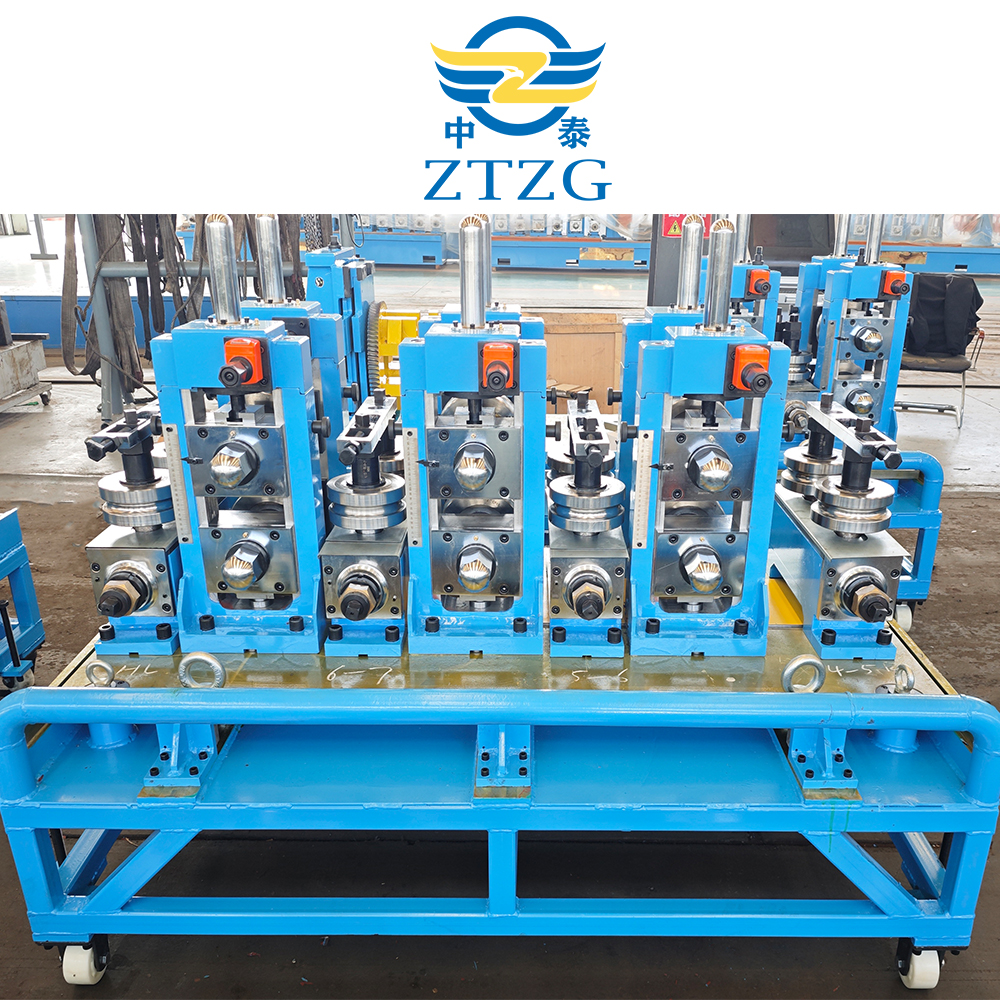

Quick-change table-type pipe welding equipment uses a motorized or hydraulic system’s “quick-change one-touch activation” to disengage the roll platform originally fixed to the equipment, detaching the platform for the original pipe diameter. Simultaneously, the platform is replaced with the new roll size, automatically connecting the horizontal support roll shaft to the drive system to complete the roll change.

Quick-change table-type pipe welding equipment is suitable for small and medium-sized pipe welding machines. It can produce a variety of pipe shapes and specifications while enabling quick changeovers at a relatively low cost.

ERW50 H.F. Straight Welded Pipe Production Line

ERW50 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 20mm-50mm in OD and 0.8mm-3.0mm in wall thickness, as well as corresponding square and rectangular pipe.

Products: GI, carbon steel and stainless steel tubes for metallurgy, construction, transportation, machinery and vehicle industries.

√ High production efficiency, line speed can be up to 120m/min.

√ High yielding, the machine works stably at a high speed, which improves the yielding of products.

√ Low wastage, low unit wastage and low production cost.

√ High accuracy, diameter error is only 0.5/100 of the pipe OD.

https://www.ztzgsteeltech.com/quick-change-workbench-%CF%8650-tube-mill-product/

Basic Technical Information of Welded Pipe Production Line

Product&yield	Round Pipe	20mm-50mm Thickness:0.8mm-3.0mm
	Square & rectangle tube	15mm×15mm -40mm×40mm Thickness:0.8mm-2.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	20-120 m/min
	Production capacity	15,000ton/year
Consumption	Mill installed capacity	65 kw
	Line Area	50m(length) ×4m (width)
	worker	6-8 workers
Raw Material	Carbon Steel coil	Q235B(ASTM GR·D,σs 230)
	Width	65mm-190mm Thickness: 0.8mm-3.0mm
	Coil ID	450-520mm
	Coil OD	Max 1500mm
	Coil Weight	1.0-2.0t

Technical flow

Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator → Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table → Inspecting → Packing → Warehouse

Detailed Explanation of Welded Pipe Equipment Working Principles

ZTZG 26 Years Focused on Welded Pipe Production Machinery,Provide professional ERW pipe mill production lines for downstream steel pipe, steel structure and cold-formed steel manufacturers.

ZTZG Welded pipe mill is distributed all over the world, providing excellent welded pipe production line mill for many large domestic and foreign companies.

It is exported to many countries and regions such as Russia, Southeast Asia, Europe, South America, Japan, Turkey, etc.

Our tube mill supports customization according to the international standards of each region. We can also design and manufacture pipe making machine according to customers’ requirements.

If you have any questions about the tube making machine, please feel free to contact us.

E-mail：sales@ztzg.com

Phone / WhatsApp：8615931058620

Previous: ZTZG’s quick-change worktable Φ127 welded pipe production line

Next: Round tube making machine with Share-Roller for forming section φ89

ERW TUBE MILL LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15×15	0.3-1.5	120	Read More
ERW32	Ф10-Ф32	10×10-25×25	0.5-2.0	120	Read More
ERW50	Ф20-Ф50	15×15-40×40	0.8-3.0	120	Read More
ERW76	Ф32-Ф76	25×25-60×60	1.2-4.0	120	Read More
ERW89	Ф42-Ф89	35×35-70×70	1.5-4.5	110	Read More
ERW114	Ф48-Ф114	40×40-90×90	1.5-4.5	65	Read More
ERW140	Ф60-Ф140	50×50-110×110	2.0-5.0	60	Read More
ERW165	Ф76-Ф165	60×60-130×130	2.0-6.0	50	Read More
ERW219	Ф89-Ф219	70×70-170×170	2.0-8.0	50	Read More
ERW273	Ф114-Ф273	90×90-210×210	3.0-10.0	45	Read More
ERW325	Ф140-Ф325	110×110-250×250	4.0-12.7	40	Read More
ERW377	Ф165-Ф377	130×130-280×280	4.0-14.0	35	Read More
ERW406	Ф219-Ф406	170×170-330×330	6.0-16.0	30	Read More
ERW508	Ф273-Ф508	210×210-400×400	6.0-18.0	25	Read More
ERW660	Ф325-Ф660	250×250-500×500	6.0-20.0	20	Read More
ERW720	Ф355-Ф720	300×300-600×600	6.0-22.0	20	Read More

STAINLESS STEEL PIPE PRODUCTION LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working speed m/min
SS25	Ф6-Ф25	5×5-20×20	0.2-0.8	10	Read More
SS32	Ф6-Ф32	5×5-25×25	0.2-1.0	10	Read More
SS51	Ф9-Ф51	7×7-40×40	0.2-1.5	10	Read More
SS64	Ф12-Ф64	10×10-50×50	0.3-2.0	10	Read More
SS76	Ф25-Ф76	20×20-60×60	0.3-2.0	10	Read More
SS114	Ф38-Ф114	30×30-90×90	0.4-2.5	10	Read More
SS168	Ф76-Ф168	60×60-130×130	1.0-3.5	10	Read More
SS219	Ф114-Ф219	90×90-170×170	1.0-4.0	10	Read More
SS325	Ф219-Ф325	170×170-250×250	2.0-8.0	3	Read More
SS426	Ф219-Ф426	170×170-330×330	3.0-10.0	3	Read More
SS508	Ф273-Ф508	210×210-400×400	4.0-12.0	3	Read More
SS862	Ф508-Ф862	400×400-600×600	6.0-16.0	2	Read More
