ZTZG’s custom profile tube mills produce high-quality, specialty welded pipes.
Our advanced Welded pipe machine is meticulously engineered to efficiently and accurately handle a variety of carbon steel materials and complex shapes.

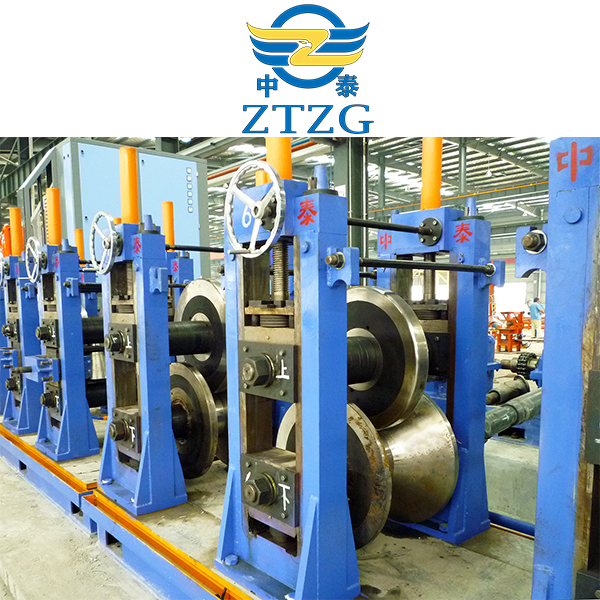

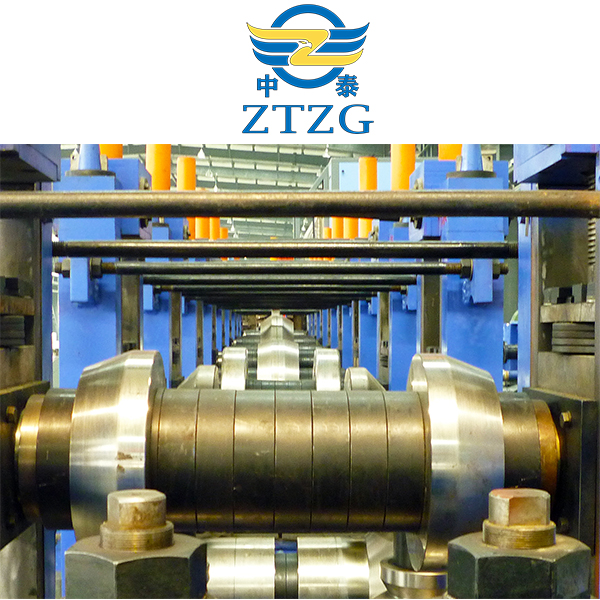

The tube mills for producing profile tubes ensure superior weld integrity and dimensional stability for diverse industrial applications.
| Standard Specification Table for ERW Special-Shaped (Cold-Formed Profile) Tube Mill Lines | |||||||||
| Note: Line speed depends on wall thickness, material grade, and cross-sectional complexity (thick-walled or complex profiles require significantly lower speeds). Standard corner radius R ≤ 1.5T; customizable upon order. | |||||||||
| Compatible Profile Cross-Sections | Mill Model | Round Pipe Range (mm) | Square & Rectangular Pipe Range (mm) | Wall Thickness (mm) | Line Speed (m/min) | Total Installed Power (kW) | HF Welder Power (kW) | Applicable Strip Width (mm) | Standard Cut-to-Length |
| Small Simple Profiles (Triangular, Flat-Oval) | HG20 | Φ8~20 | 8×8~18×18 | 0.3~1.5 | 30~150 | 210 | 100 | 30~80 | 3~6m |
| Small Hexagonal, Oval, D-Shaped | HG32 | Φ10~32 | 10×10~30×30, 10×20 | 0.4~2.0 | 30~150 | 300 | 150 | 40~120 | 3~6m |
| Hexagonal, Oval | HG50 | Φ16~50 | 15×15~40×40, 20×40 | 0.7~2.5 | 30~120 | 410 | 200 | 60~180 | 3~6m |
| Triangular, Hexagonal, Obround (Flat-Sided Oval) | HG76 | Φ25~76 | 20×20~60×60, 30×80 | 0.8~3.5 | 25~120 | 580 | 300 | 80~260 | 4~6m |
| Medium-Complexity Special Profiles | HG89 | Φ32~89 | 30×30~70×70, 40×100 | 1.0~4.5 | 20~90 | 660 | 300 | 100~320 | 4~8m |
| Large Hexagonal, Trapezoidal Tubes | HG114 | Φ45~114 | 40×40~90×90, 50×120 | 1.5~5.0 | 20~70 | 920 | 400 | 140~400 | 4~8m |
| Heavy-Wall Profiles, Large D-Shaped | HG165 | Φ60~165 | 60×60~130×130, 80×160 | 2.0~6.0 | 15~50 | 1,100 | 500 | 180~520 | 6~12m |
| Large Structural Profiles, Large Obround | HG219 | Φ89~219 | 90×90~170×170, 100×200 | 3.0~8.0 | 12~45 | 1,400 | 600 | 240~650 | 6~12m |
The special-shaped pipe production line is a pipe-making machine specifically developed for the large-scale, high-precision, and high-efficiency production of various non-circular cross-section shaped pipes.
It can stably mass-produce various standard and non-standard shaped pipes, widely adaptable to the pipe production needs of multiple industries such as industrial manufacturing, construction engineering, automotive parts, medical devices, and petrochemicals. It is an essential welded pipe production equipment for high-end pipe companies.
The shaped pipe production line can mass-produce various conventional shaped pipes, including elliptical pipes, flat elliptical pipes, semi-circular pipes, D-shaped pipes, triangular pipes, hexagonal pipes, octagonal pipes, fan-shaped pipes, T-shaped pipes, and arched pipes. It also supports customized production of various non-standard shaped cross-section pipes, and can customize exclusive forming molds and production solutions according to customer drawings and working conditions.
To learn more about other pipe making machine products, click the link below:
If you have any questions about the tube making machine, please feel free to contact us.
|
ERW TUBE MILL LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
|
|
ERW20 |
Ф8-Ф20 |
6x6-15×15 |
0.3-1.5 |
120 |
Read More |
|
ERW32 |
Ф10-Ф32 |
10×10-25×25 |
0.5-2.0 |
120 |
|
|
ERW50 |
Ф20-Ф50 |
15×15-40×40 |
0.8-3.0 |
120 |
|
|
ERW76 |
Ф32-Ф76 |
25×25-60×60 |
1.2-4.0 |
120 |
|
|
ERW89 |
Ф42-Ф89 |
35×35-70×70 |
1.5-4.5 |
110 |
|
|
ERW114 |
Ф48-Ф114 |
40×40-90×90 |
1.5-4.5 |
65 |
|
|
ERW140 |
Ф60-Ф140 |
50×50-110×110 |
2.0-5.0 |
60 |
|
|
ERW165 |
Ф76-Ф165 |
60×60-130×130 |
2.0-6.0 |
50 |
|
|
ERW219 |
Ф89-Ф219 |
70×70-170×170 |
2.0-8.0 |
50 |
|
|
ERW273 |
Ф114-Ф273 |
90×90-210×210 |
3.0-10.0 |
45 |
|
|
ERW325 |
Ф140-Ф325 |
110×110-250×250 |
4.0-12.7 |
40 |
|
|
ERW377 |
Ф165-Ф377 |
130×130-280×280 |
4.0-14.0 |
35 |
|
|
ERW406 |
Ф219-Ф406 |
170×170-330×330 |
6.0-16.0 |
30 |
|
|
ERW508 |
Ф273-Ф508 |
210×210-400×400 |
6.0-18.0 |
25 |
Read More |
|
ERW660 |
Ф325-Ф660 |
250×250-500×500 |
6.0-20.0 |
20 |
Read More |
|
ERW720 |
Ф355-Ф720 |
300×300-600×600 |
6.0-22.0 |
20 |
Read More |
|
STAINLESS STEEL PIPE PRODUCTION LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working speed m/min |
|
|
SS25 |
Ф6-Ф25 |
5×5-20×20 |
0.2-0.8 |
10 |
Read More |
|
SS32 |
Ф6-Ф32 |
5×5-25×25 |
0.2-1.0 |
10 |
Read More |
|
SS51 |
Ф9-Ф51 |
7×7-40×40 |
0.2-1.5 |
10 |
Read More |
|
SS64 |
Ф12-Ф64 |
10×10-50×50 |
0.3-2.0 |
10 |
Read More |
|
SS76 |
Ф25-Ф76 |
20×20-60×60 |
0.3-2.0 |
10 |
Read More |
|
SS114 |
Ф38-Ф114 |
30×30-90×90 |
0.4-2.5 |
10 |
Read More |
|
SS168 |
Ф76-Ф168 |
60×60-130×130 |
1.0-3.5 |
10 |
Read More |
|
SS219 |
Ф114-Ф219 |
90×90-170×170 |
1.0-4.0 |
10 |
Read More |
|
SS325 |
Ф219-Ф325 |
170×170-250×250 |
2.0-8.0 |
3 |
Read More |
|
SS426 |
Ф219-Ф426 |
170×170-330×330 |
3.0-10.0 |
3 |
Read More |
|
SS508 |
Ф273-Ф508 |
210×210-400×400 |
4.0-12.0 |
3 |
Read More |
|
SS862 |
Ф508-Ф862 |
400×400-600×600 |
6.0-16.0 |
2 |
Read More |
