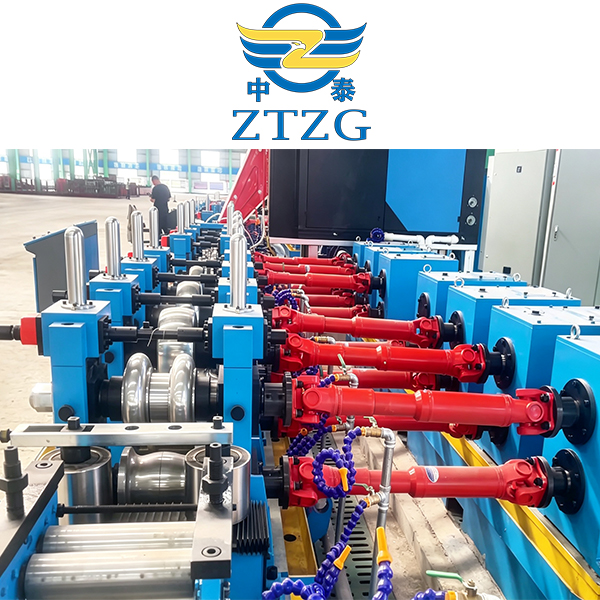

square tube mill square pipe making machine
This is a new, fully automated, roller-share square tube production line. It is suitable for producing medium to large-sized square and rectangular tubes ranging from 200 to 500 square meters.
It is a fully automated welded pipe production line that requires no roller changes.
The production of square and rectangular tubes of different specifications can be achieved by adjusting and changing the rollers online via a motor. This significantly reduces roller costs and improves production efficiency. The mechanized adjustment precision is higher, resulting in more regular tube shapes.
Manufacturers of large-diameter square and rectangular tubes for building structures, industrial machinery, and transportation should definitely learn about our automated, roller-share welded pipe making machine!
|
ERW TUBE MILL LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
|
|
ERW20 |
Ф8-Ф20 |
6x6-15×15 |
0.3-1.5 |
120 |
Read More |
|
ERW32 |
Ф10-Ф32 |
10×10-25×25 |
0.5-2.0 |
120 |
|
|
ERW50 |
Ф20-Ф50 |
15×15-40×40 |
0.8-3.0 |
120 |
|
|
ERW76 |
Ф32-Ф76 |
25×25-60×60 |
1.2-4.0 |
120 |
|
|
ERW89 |
Ф42-Ф89 |
35×35-70×70 |
1.5-4.5 |
110 |
|
|
ERW114 |
Ф48-Ф114 |
40×40-90×90 |
1.5-4.5 |
65 |
|
|
ERW140 |
Ф60-Ф140 |
50×50-110×110 |
2.0-5.0 |
60 |
|
|
ERW165 |
Ф76-Ф165 |
60×60-130×130 |
2.0-6.0 |
50 |
|
|
ERW219 |
Ф89-Ф219 |
70×70-170×170 |
2.0-8.0 |
50 |
|
|
ERW273 |
Ф114-Ф273 |
90×90-210×210 |
3.0-10.0 |
45 |
|
|
ERW325 |
Ф140-Ф325 |
110×110-250×250 |
4.0-12.7 |
40 |
|
|
ERW377 |
Ф165-Ф377 |
130×130-280×280 |
4.0-14.0 |
35 |
|
|
ERW406 |
Ф219-Ф406 |
170×170-330×330 |
6.0-16.0 |
30 |
|
|
ERW508 |
Ф273-Ф508 |
210×210-400×400 |
6.0-18.0 |
25 |
Read More |
|
ERW660 |
Ф325-Ф660 |
250×250-500×500 |
6.0-20.0 |
20 |
Read More |
|
ERW720 |
Ф355-Ф720 |
300×300-600×600 |
6.0-22.0 |
20 |
Read More |
|
STAINLESS STEEL PIPE PRODUCTION LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working speed m/min |
|
|
SS25 |
Ф6-Ф25 |
5×5-20×20 |
0.2-0.8 |
10 |
Read More |
|
SS32 |
Ф6-Ф32 |
5×5-25×25 |
0.2-1.0 |
10 |
Read More |
|
SS51 |
Ф9-Ф51 |
7×7-40×40 |
0.2-1.5 |
10 |
Read More |
|
SS64 |
Ф12-Ф64 |
10×10-50×50 |
0.3-2.0 |
10 |
Read More |
|
SS76 |
Ф25-Ф76 |
20×20-60×60 |
0.3-2.0 |
10 |
Read More |
|
SS114 |
Ф38-Ф114 |
30×30-90×90 |
0.4-2.5 |
10 |
Read More |
|
SS168 |
Ф76-Ф168 |
60×60-130×130 |
1.0-3.5 |
10 |
Read More |
|
SS219 |
Ф114-Ф219 |
90×90-170×170 |
1.0-4.0 |
10 |
Read More |
|
SS325 |
Ф219-Ф325 |
170×170-250×250 |
2.0-8.0 |
3 |
Read More |
|
SS426 |
Ф219-Ф426 |
170×170-330×330 |
3.0-10.0 |
3 |
Read More |
|
SS508 |
Ф273-Ф508 |
210×210-400×400 |
4.0-12.0 |
3 |
Read More |
|
SS862 |
Ф508-Ф862 |
400×400-600×600 |
6.0-16.0 |
2 |
Read More |
