ZTZG’s quick-change worktable Φ127 welded pipe production line
Short Description:

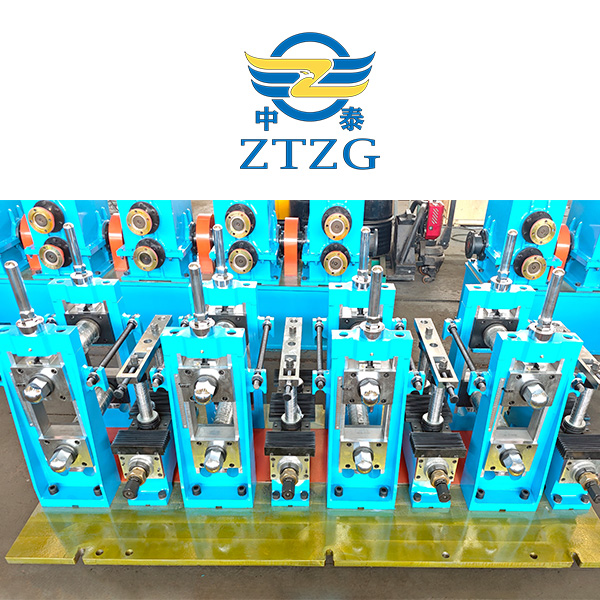

ZTZG’s quick-change worktable welded pipe production line:
It allows rolls to be pre-assembled onto the quick-change table or bracket on the quick-change shaft.
The entire pipe production line, including the plate forming, sizing, and rough straightening sections, can be equipped with a spare quick-change worktable.
When producing pipes of different sizes, the quick-change worktable that requires replacement can be directly loaded onto the pipe production line, replacing the existing pipe production unit.
This system eliminates the need to disassemble and install rolls during roll replacement, saving significant production time and improving pipe manufacturing efficiency.
This pipe making machine is suitable for pipe manufacturers producing small and medium-diameter welded pipes.
ZTZG’s quick-change worktable welded pipe production line:
It allows rolls to be pre-assembled onto the quick-change table or bracket on the quick-change shaft.
The entire pipe production line, including the plate forming, sizing, and rough straightening sections, can be equipped with a spare quick-change worktable.
When producing pipes of different sizes, the quick-change worktable that requires replacement can be directly loaded onto the pipe production line, replacing the existing pipe production unit.
This system eliminates the need to disassemble and install rolls during roll replacement, saving significant production time and improving pipe manufacturing efficiency.
This pipe making machine is suitable for pipe manufacturers producing small and medium-diameter welded pipes.
|
ERW TUBE MILL LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
|
|
ERW20 |
Ф8-Ф20 |
6x6-15×15 |
0.3-1.5 |
120 |
Read More |
|
ERW32 |
Ф10-Ф32 |
10×10-25×25 |
0.5-2.0 |
120 |
|
|
ERW50 |
Ф20-Ф50 |
15×15-40×40 |
0.8-3.0 |
120 |
|
|
ERW76 |
Ф32-Ф76 |
25×25-60×60 |
1.2-4.0 |
120 |
|
|
ERW89 |
Ф42-Ф89 |
35×35-70×70 |
1.5-4.5 |
110 |
|
|
ERW114 |
Ф48-Ф114 |
40×40-90×90 |
1.5-4.5 |
65 |
|
|
ERW140 |
Ф60-Ф140 |
50×50-110×110 |
2.0-5.0 |
60 |
|
|
ERW165 |
Ф76-Ф165 |
60×60-130×130 |
2.0-6.0 |
50 |
|
|
ERW219 |
Ф89-Ф219 |
70×70-170×170 |
2.0-8.0 |
50 |
|
|
ERW273 |
Ф114-Ф273 |
90×90-210×210 |
3.0-10.0 |
45 |
|
|
ERW325 |
Ф140-Ф325 |
110×110-250×250 |
4.0-12.7 |
40 |
|
|
ERW377 |
Ф165-Ф377 |
130×130-280×280 |
4.0-14.0 |
35 |
|
|
ERW406 |
Ф219-Ф406 |
170×170-330×330 |
6.0-16.0 |
30 |
|
|
ERW508 |
Ф273-Ф508 |
210×210-400×400 |
6.0-18.0 |
25 |
Read More |
|
ERW660 |
Ф325-Ф660 |
250×250-500×500 |
6.0-20.0 |
20 |
Read More |
|
ERW720 |
Ф355-Ф720 |
300×300-600×600 |
6.0-22.0 |
20 |
Read More |
|
STAINLESS STEEL PIPE PRODUCTION LINE |
|||||
|
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working speed m/min |
|
|
SS25 |
Ф6-Ф25 |
5×5-20×20 |
0.2-0.8 |
10 |
Read More |
|
SS32 |
Ф6-Ф32 |
5×5-25×25 |
0.2-1.0 |
10 |
Read More |
|
SS51 |
Ф9-Ф51 |
7×7-40×40 |
0.2-1.5 |
10 |
Read More |
|
SS64 |
Ф12-Ф64 |
10×10-50×50 |
0.3-2.0 |
10 |
Read More |
|
SS76 |
Ф25-Ф76 |
20×20-60×60 |
0.3-2.0 |
10 |
Read More |
|
SS114 |
Ф38-Ф114 |
30×30-90×90 |
0.4-2.5 |
10 |
Read More |
|
SS168 |
Ф76-Ф168 |
60×60-130×130 |
1.0-3.5 |
10 |
Read More |
|
SS219 |
Ф114-Ф219 |
90×90-170×170 |
1.0-4.0 |
10 |
Read More |
|
SS325 |
Ф219-Ф325 |
170×170-250×250 |
2.0-8.0 |
3 |
Read More |
|
SS426 |
Ф219-Ф426 |
170×170-330×330 |
3.0-10.0 |
3 |
Read More |
|
SS508 |
Ф273-Ф508 |
210×210-400×400 |
4.0-12.0 |
3 |
Read More |
|
SS862 |
Ф508-Ф862 |
400×400-600×600 |
6.0-16.0 |
2 |
Read More |
